FLORIAN SECURITY SYSTEMS S.A.

MEDICAL USE

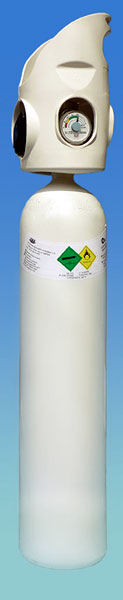

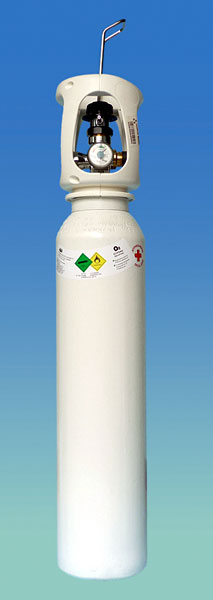

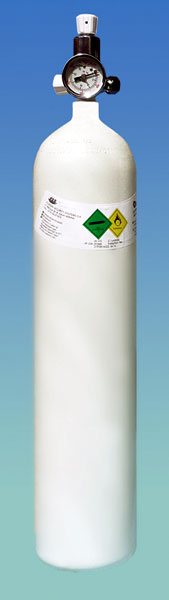

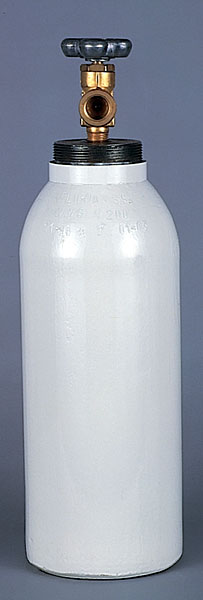

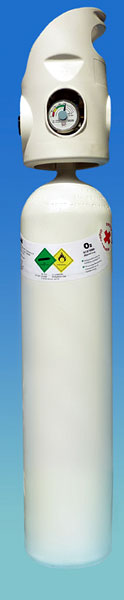

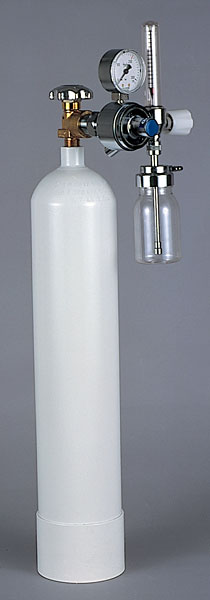

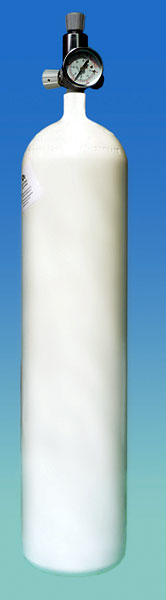

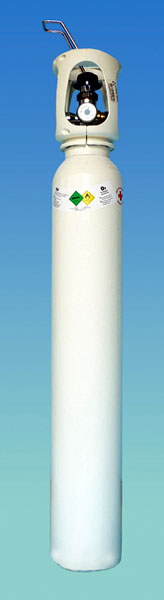

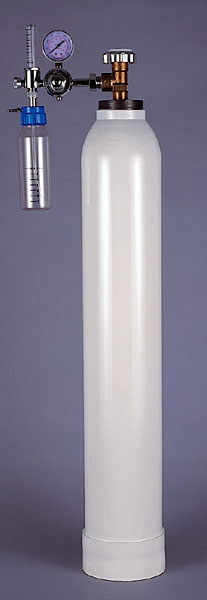

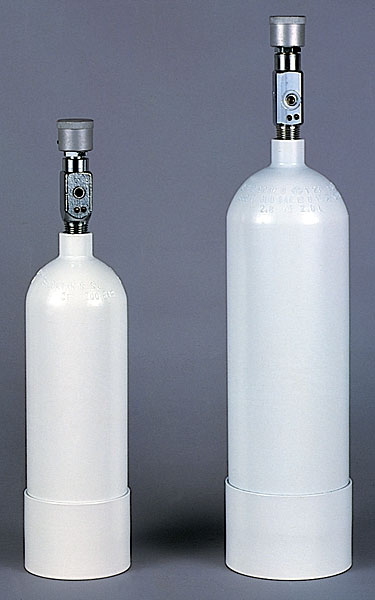

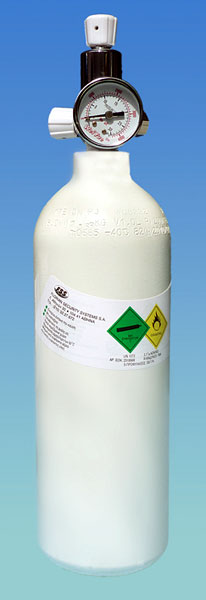

CYLINDERS FOR MEDICAL USE
Prevention and Protection

For several years now and with a high sense of responsibility, FSS has been providing its customers with medical cylinders of all capacities and types, accompanied by TÜV, Lloyd’s, EEC etc. certificates. Following the directives of the EEC, EN standards, FSS ensures the patiens’ safety and protection.

WATER CAPACITY (lt)	OUTER DIAMETER	TEST PRESSURE	LENGTH	NET WEIGHT	FILLING RATE 0,75kg/lt CO₂ (kg)
1	82,5mm	300bar	280mm	1,9kg	-
2	102mm	250bar	355mm	3kg	1.5
3	100mm	300bar	500mm	6,9kg	-
4	114,3mm	300bar	505mm	4,4kg	-
5	139,7mm	300bar	450mm	8kg	-
6	140mm	300bar	520mm	9,8kg	-
6,7	139,7mm	250bar	570mm	6,8kg	5.00
8	139,7mm	250bar	670mm	8,3kg	6.00
10	139,7mm	300bar	825mm	13,6kg	-

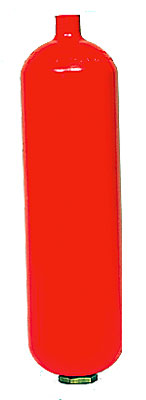

INDUSTRIAL GAS CYLINDERS
Quality in Industry

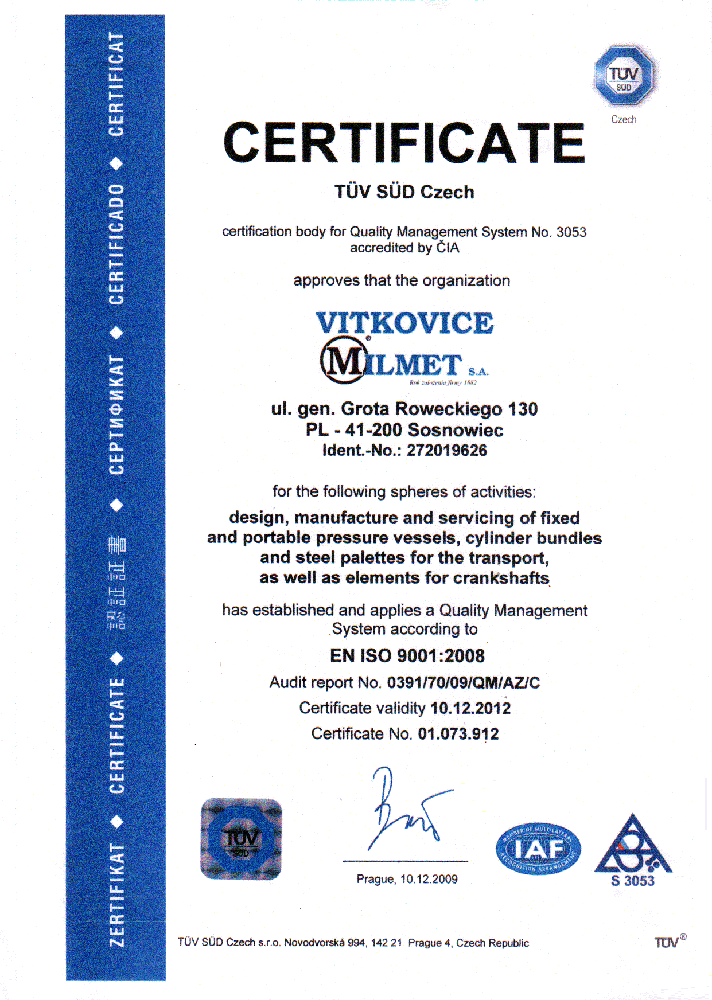

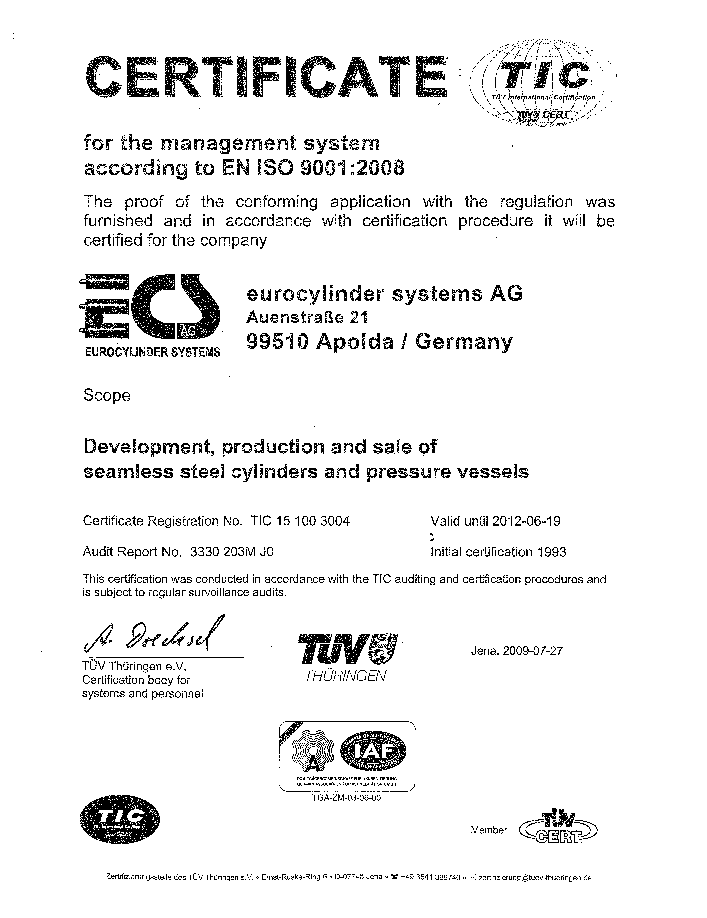

F.S.S. has been trading with the greatest industrial and medical gas cylinder firms of Europe, such as EUROCYLINDER SYSTEMS, VITKOVICE MILMET for many years. It has in stock a complete variety of cylinders of all types and sizes, which are always accompanied by TÜV, Lloyd’s, EEC etc. certificates in compliance with the high European Standards TPED 99/36ΕC with «π» mark, for the immediate satisfaction of its customer’s requirements.

STANDARDS

EWG (EEC): EWG - TRG 801
GERMAN: DBV/TRG
AUSTRIAN: DKV
FRENCH: AM 9/2/82
ENGLISH: BS 50 45
SWISS: EMPA
SWEDISH: 1967 (1:1977)
BELGIUM: ISO
DENMARK: Dantest
SPANISH: MIE - AP – 7

WATER CAPACITY (lt)	OUTER DIAMETER	TEST PRESSURE	LENGTH	NET WEIGHT	FILLING RATE 0,75kg/lt CO₂ (kg)
5	139,7mm	300bar	450mm	8kg	-
10	139,7mm	300bar	825mm	13,6kg	-
13,4	139,7-204mm	250bar	1060-580mm	14,3-17kg	10.00
20	204mm	60-300bar	825mm	24-26,5kg	-
26,7	204mm	250bar	1035mm	30kg	20.00
40	204mm	250bar	1510mm	40,5kg	30.00
50	229mm	300bar	1825mm	186,5kg	-
30	229mm	300bar	935mm	40kg	-
40	229mm	300bar	1205mm	49kg	-
50	233mm	450bar	1530mm	80kg	-

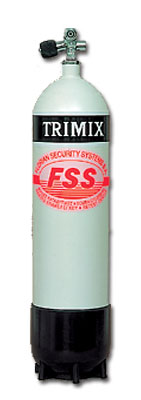

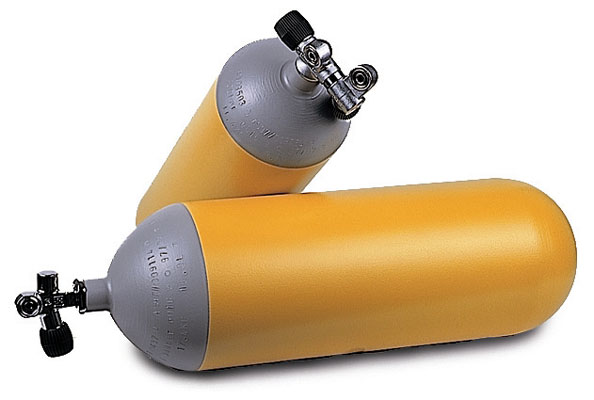

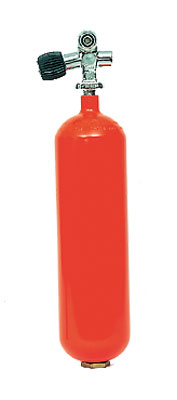

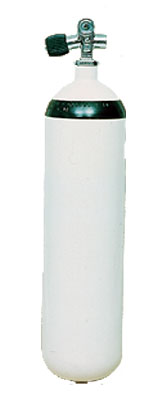

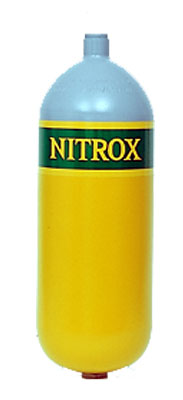

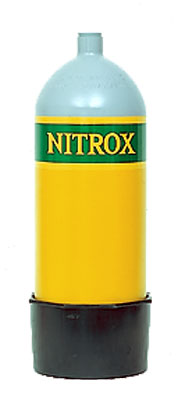

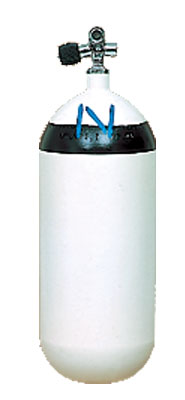

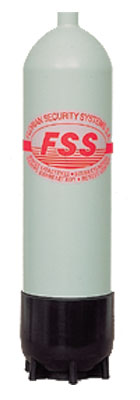

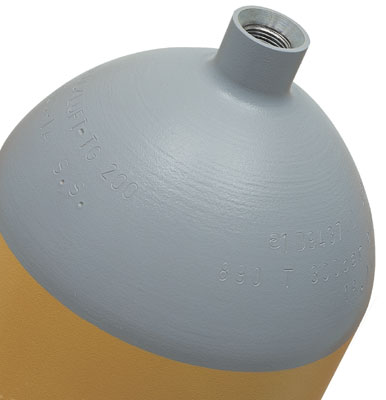

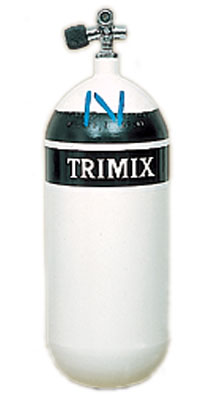

SCUBA CYLINDERS
Secure diving

As a pioneer in the field of high pressure cylinders, FSS always near the funs of submarine diving, offers diving cylinders of great reliability and tolerance, making thas the diver feel safe and secure in his diving.

F.S.S in colaboration with EUROCYLINDER SYSTEMS Germany, has steel scuba cylinders of all types and sizes, which offer high anticorrosive protection. All the cylinders are made according to the European Regulation 99/36 EC and marked with CE or π and are also accompanied with the ne-cessary manufacturing certificates such as TUV etc.

Safety Rules for Scuba Cylinders

KPlease look for the date of the next hydraulic test on your cylinder.
Keep the cylinder standing.
Fill the cylinder with dry air only.
Never use all the air that your cylinder contains (min. residual pressure: approx. 10 bar).
Never expose the cylinder to intensive sunshine for extended periods (max. temperatures: +50^ο C).
Never attempt to repair the cylinder yourself.

For further information, seek the advice of your supplier or your instructor.

VOLUME (lt)	EXTERNAL DIAMETER (mm)	WORKING PRESSURE (bar)	TEST PRESSURE (bar)	LENGTH (mm)	WEIGHT (kg)
2	100	300	450	370	3.3
3	100	300	450	493	4.3
6	140	300	450	535	9
8	171	200	300	490	9.5
10	171	200	300	590	11.5
11	171	200	300	640	12.5
12	171-204	200-230	300-350	690-540	13.5-15.00
13	204	200	300	570	16
15	204	200-300	300-350	650	18
16	204	200-300	300-350	670	19

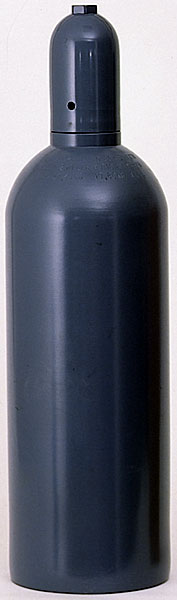

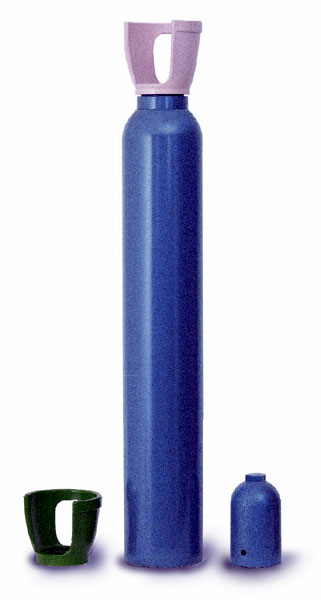

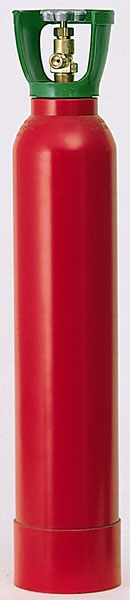

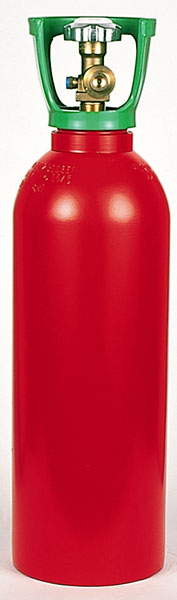

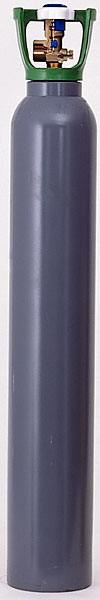

BEVERAGE CYLINDERS
Amusement and tradition

BEVERAGE CYLINDERS

Following a ten-year-old tradition in the field of CO₂ cylinders mixtures of N₂+CO₂ and N₂ for beer barrel, wine and softdrinks, FSS trades with the greatest gas cylinder manufacturers of Europe. All the cylinders are produced according to the European Regulation 99/36ΕC with Π mark and also are relying on the credibility of TÜV, Lloyd’s, etc. certificates which are in compliance with the high European Standards EN, FSS garantees the immediate service of its customers with the greatest safety.

VOLUME (lt)	EXTERNAL DIAMETER (mm)	TEST PRESSURE (bar)	LENGTH (mm)	WEIGHT (kg)	FILLING RATE 0.75kg/l CO₂ (kg)
6.7	139.7	250	570	6.8	-
8	139.7	250	570	8.6	-
10	139.7	300	825	13.6	-
13.4	139.7-204	250	1060-580	14.3-17.0	10
40	204	1510	1510	30	-
